Basic Information

Height 153.6mm

Width 75.8mm

Thickness 8.1mm

Weight 175g

Battery 4000mAh (typical value)

Capacity 16GB/32GB/64GB

Screen

Size 5.5-inch

Resolution 1920 x 1080

Contrast 1000:1

PPI 403

Brightness 450cd/m² (typical value)

Manufacturing Process GFF (full lamination)

Processor & Memory

Helio P10 processor

ARM® cortex®-A53™1.8GHz x4+

ARM® cortex®-A53™1.0GHz x4

ARM Mali-T860 GPU

3GB/4GB LPDDR3 RAM

Camera
Rear camera

13 megapixel

ƒ/2.2 large aperture

5-element lens

Continuous shooting

Panorama

High-speed PDAF

Dual-color flash

Front camera

5 megapixel

ƒ/2.0 aperture

4-element lens

ArcSoft® beautification algorithm

Face AE smart facial brightness adjustment

mTouch

Response speed 0.2s

Recognition angle 360°

Sensor Capacitive touch sensor

Memory 5 fingerprints

Carriers and Standards
Network Support

4G FDD-LTE (B1, B3, B5, B7, B20)

4G TD-LTE (B38, B40)

3G WCDMA (B1, B2, B5, B8)

2G GSM (B2, B3, B5, B8)

All models

802.11 a/b/g/n WiFi

5GHz and 2.4GHz

Bluetooth 4.0

BLE support

Sensors

Hall magnetic sensor, gravity sensor,

infrared proximity sensor, gyroscope, ambient light sensor,

touch sensor, digital compass

Positioning

GPS

A-GPS

GLONASS

Digital compass

Multimedia

Video: MP4, 3GP, MOV, MKV, AVI, FLV, MPEG

Audio: FLAC, APE, AAC, MKA, OGG, MIDI, M4A, AMR

Image: JPEG, PNG, GIF, BMP

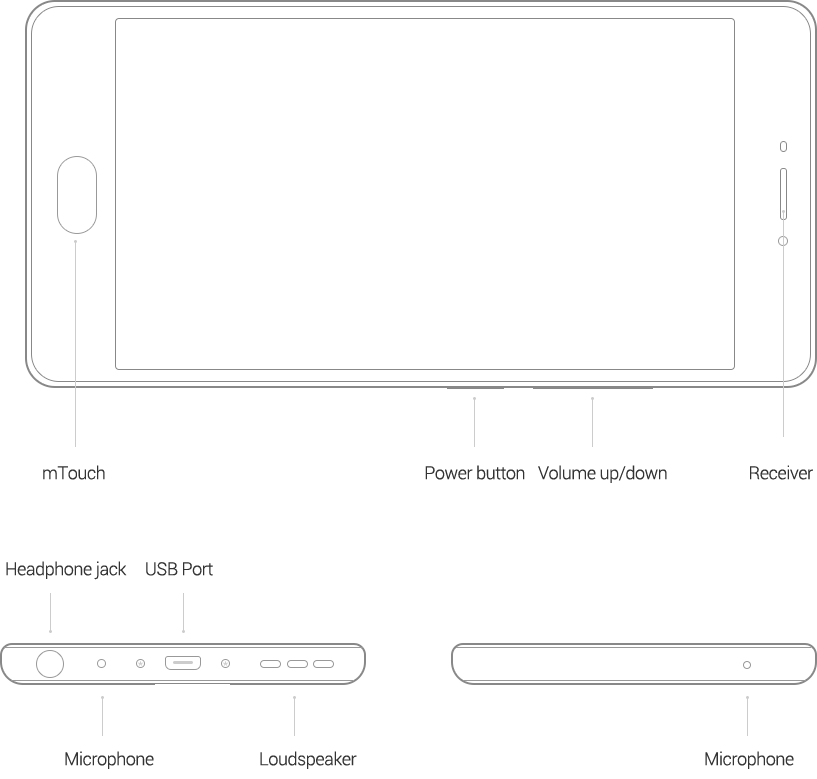

Buttons and Ports
按键与接口
Operating Environment

Working environment temperature -10 to 40°C

Relative humidity 95%

Operational altitude Up to 5,000 meters

Note:

1. The actual size and weight of the phone may vary due to different specifications and assembly tolerance.

2. The above data were gathered in tests in a lab environment. To avoid phone damage or malfunctioning, please avoid using your phone under extreme conditions.

3. Relevant patents of this product are licensed by Qualcomm.
